MAQUINAS CORTE SIERRA CIRCULAR

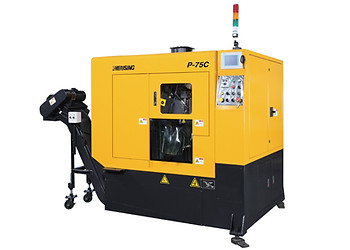

P-75C
CAPACITY: 10 - 75 mm / 10 - 54 mm / 10 - 54 mm.
BLADE MOTOR: 7.5 kW
HYDRAULIC PUMP MOTOR: 1.5 kW
SERVO MOTOR: Blade Feed 1.5 kW Bar Feed 1 kW Third Vise(Opt) 1 kW
BLADE SPEED: 50 - 200 rpm
SAW BLADE SIZE (T: KERF T: THICKNESS): Standard Blade Ø 285 x T2.0 x 1.75t mm Thin Kerf Blade(Opt.) Ø 285 x T1.5 x 1.25t mm
BLADE FEED: Servo motor and ball screw
BAR FEED: Servo motor and ball screw
AUTOMATIC FEED LENGTH: Single feed 8 - 600 mm Multiple feed – 3000
AUTOMATIC CHIP CONVEYOR: Scraper Type
COOLING: Air Compressed Oil Mist
MACHINE WEIGHT WITH TABLE: 4900 kg
LOAD TABLE (W x L): 1200 mm. X 5200 mm.
FLOOR SPACE (MM): Machine 2700 W x 1900 L Machine With Load Table 2700 W x 6835 L
P-150C
CAPACITY: 70 - 150 mm / 70 - 105 mm / 70 - 105 mm
BLADE MOTOR: 15 kW
HYDRAULIC PUMP MOTOR: 3.7 kW
SERVO MOTOR: Blade Feed 2 kW Bar Feed 2 kW Third Vise(Opt) 1 kW
BLADE SPEED: 30 - 125 rpm
SAW BLADE SIZE (T: KERF T: THICKNESS): Standard blade Ø460 x T2.7 x 2.25t mm.
BLADE FEED: Servo motor and ball screw
BAR FEED: Servo motor and ball screw
AUTOMATIC FEED LENGTH: Single feed 10 - 700 mm Multiple feed – 3000 mm
AUTOMATIC CHIP CONVEYOR: Scraper Type
COOLING: Air Compressed oil Mist
MACHINE WEIGHT WITH TABLE: 4900 kg
LOAD TABLE (W x L): 1200 mm. X 5200 mm.
FLOOR SPACE (MM): Machine 3100 W x 2075 L Machine With Load Table 3100 W x 7175 L
P-230B
CAPACITY: 70 - 230mm / 70 - 160 mm
BLADE MOTOR: 15 kW
HYDRAULIC PUMP MOTOR: 3.7 kW
SERVO MOTOR: Blade Feed 3.5 kW Bar Feed 3.5 kW
BLADE SPEED: 30 - 125 rpm
SAW BLADE SIZE (T: KERF T: THICKNESS): Standard Blade Ø 750 x T3.8 x 3.2t mm
BLADE FEED: Servo motor and ball screw
BAR FEED: Servo motor and ball screw
AUTOMATIC FEED LENGTH: Single feed 10 - 500 mm Multiple feed – 3000
AUTOMATIC CHIP CONVEYOR: Chain Type
COOLING: Air Compressed Oil Mist
MACHINE WEIGHT WITH TABLE: 8000 kg
LOAD TABLE (W x L): 2286 mm. X 5380 mm.
FLOOR SPACE (MM): Machine 3510 W x 1825 L Machine With Load Table 3510 W x 7120 L
P-100C
CAPACITY: 15 - 100mm / 15 - 8 mm / 15 - 80mm.
BLADE MOTOR: 11 kW
HYDRAULIC PUMP MOTOR: 2.2 kW
SERVO MOTOR: Blade Feed 1.5 kW Bar Feed 1.5 kW Third Vise(Opt) 1 kW
BLADE SPEED: 40 - 160 rpm
SAW BLADE SIZE (T: KERF T: THICKNESS): Standard Blade Ø 360 x T2.6 x 2.25t mm Thin Kerf Blade(Opt.) Ø 360 x T2.0 x 1.75t mm.
BLADE FEED: Servo motor and ball screw
BAR FEED: Servo motor and ball screw
AUTOMATIC FEED LENGTH: Single feed 8 - 600 mm Multiple feed – 3000
AUTOMATIC CHIP CONVEYOR: Scraper Type
COOLING: Air compressed oil mist
MACHINE WEIGHT WITH TABLE: 3900 kg
LOAD TABLE (W x L): 1200 mm. X 5200 mm.
FLOOR SPACE (MM): Machine 2900 W x 1900 L Machine With Load Table 2900 W x 6835 L
